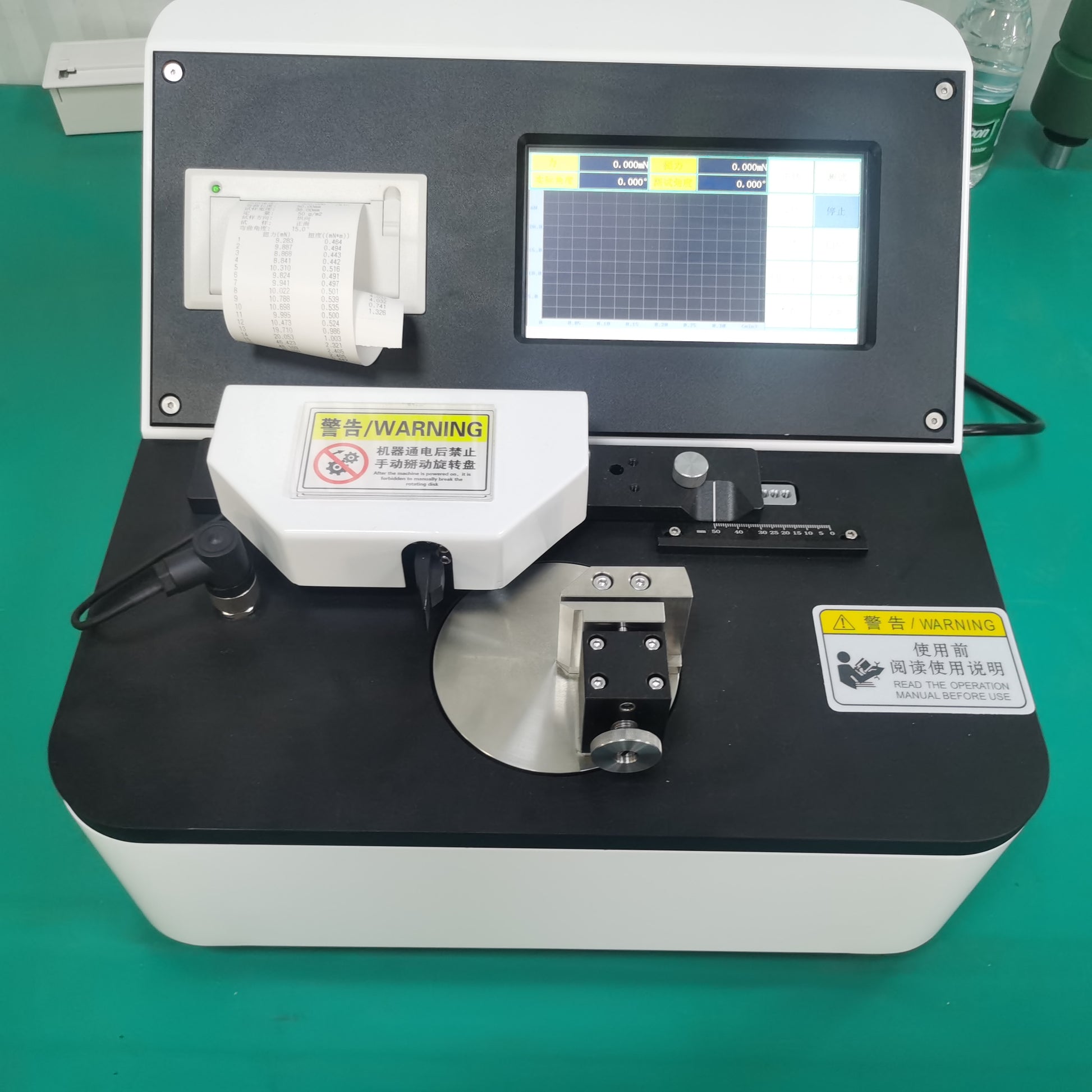

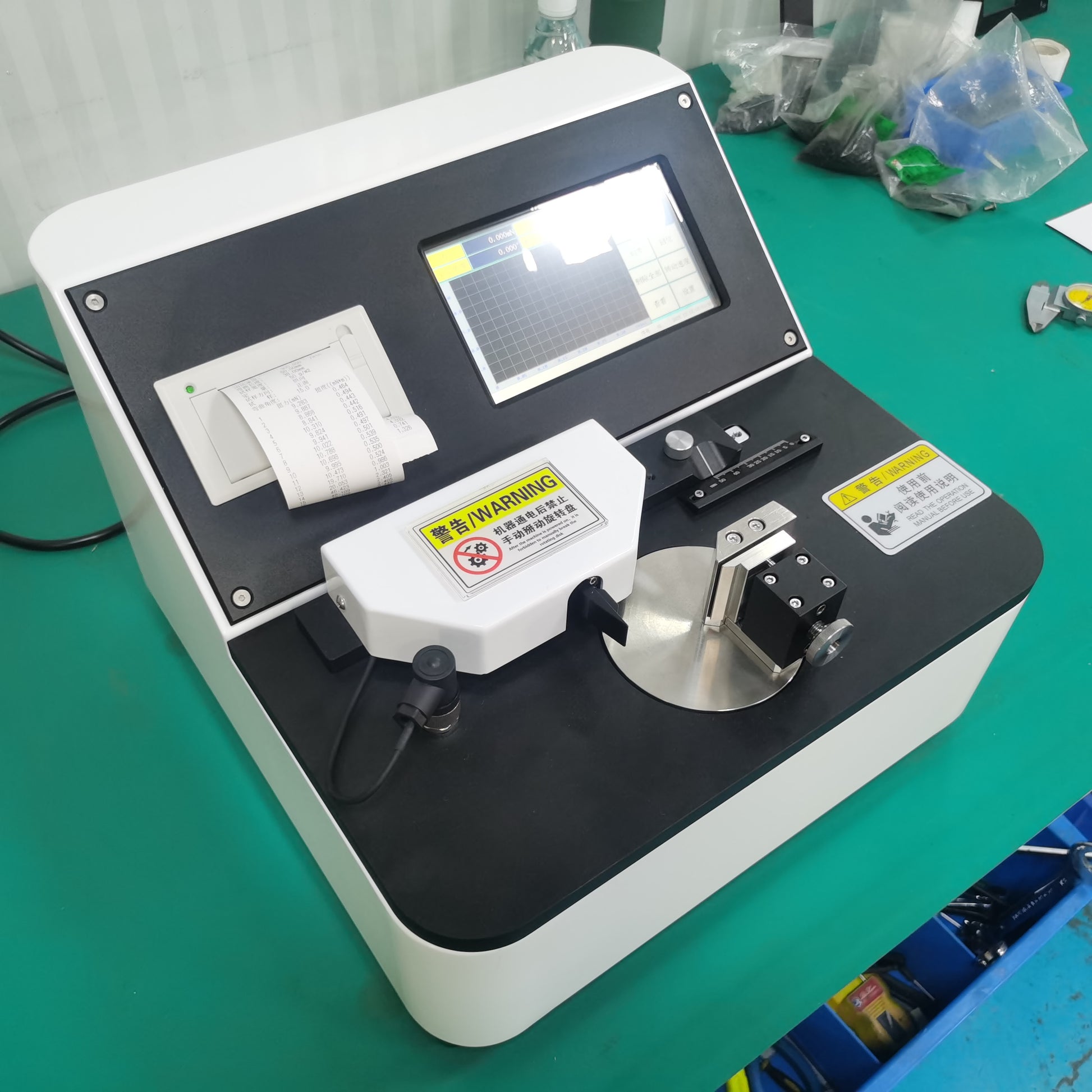

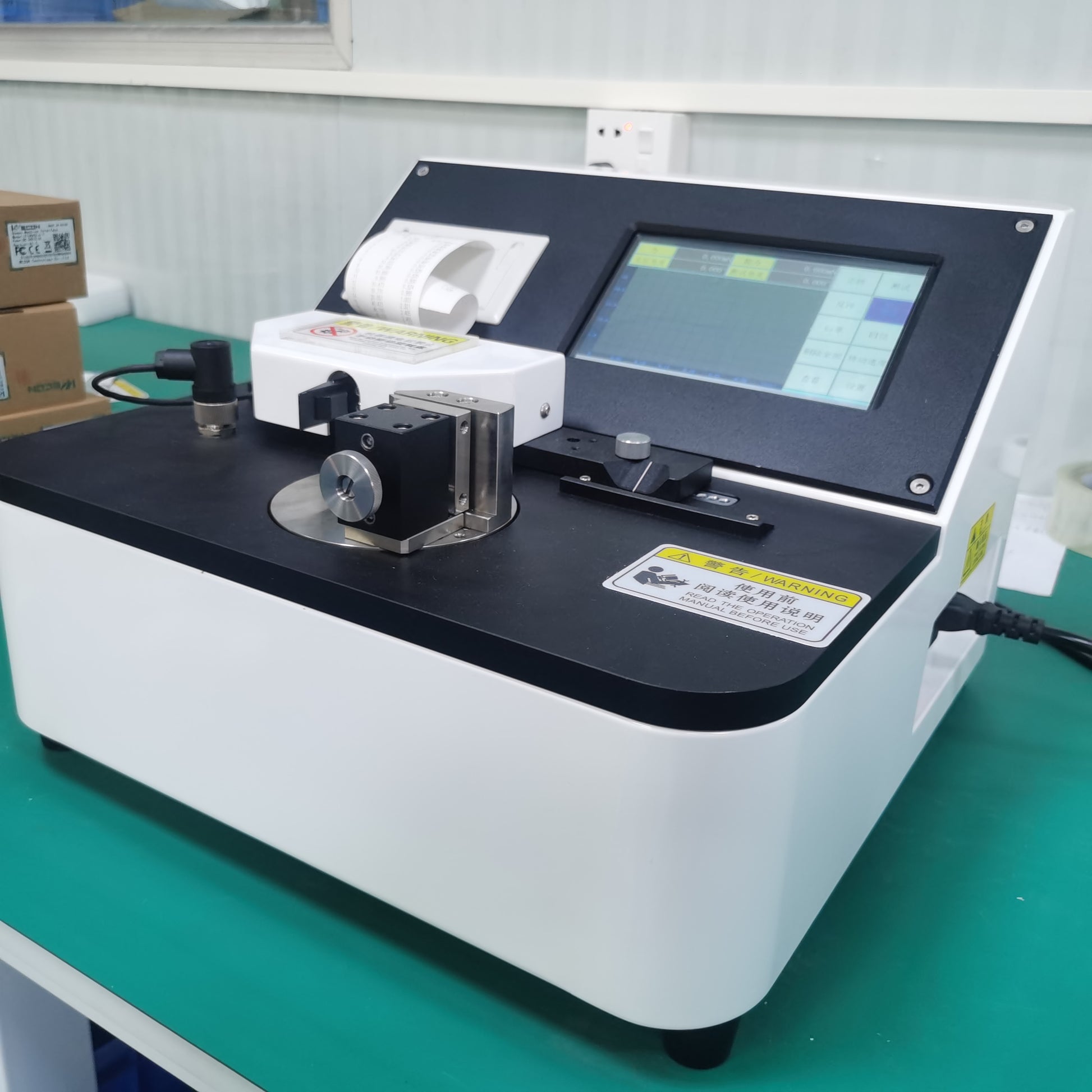

Bending Stiffness Tester

Model: SEMY-TD50
Name: Paper and Paperboard Static Bending Stiffness Tester
Purpose:
The bending stiffness tester is an instrument used to test the bending stiffness of paper and paperboard. This bending stiffness tester can also be used to test the bending stiffness performance of sheet materials such as films, mica sheets, graphite sheets, and composite materials.

Standard Basis:
GB/T 23144, GB/T 22364, ISO 5628, ISO 2493, QB/T1051

Technical Parameters: (High-precision bending performance measurement)
>Sample size: 38*80mm (standard size)
>Actual measurement size: 38*50mm (standard)
>Bending length: 8 gears adjustable (50/40/30/25/20/15/10/5mm)
>Span accuracy: ±0.1mm
>Measurement range: (0~10000)mN (0-500)mN.m
>Sensor: Sensor accuracy ±0.1%
>Resolution: 0.01mN
>Bending angle: 1~92° steplessly adjustable
>Angular velocity control: 0.5- 500°/sec adjustable, three test angles and durations independently adjustable
>Angle accuracy: ±0.1
>Measurement thickness: Suitable for paper and other composite materials with a thickness of (0.01~5.0)mm
>Bending time: Different bending times can be selected according to the elasticity of the material:
>·Operation interface: 7-inch touch screen operation interface, visual menu operation.

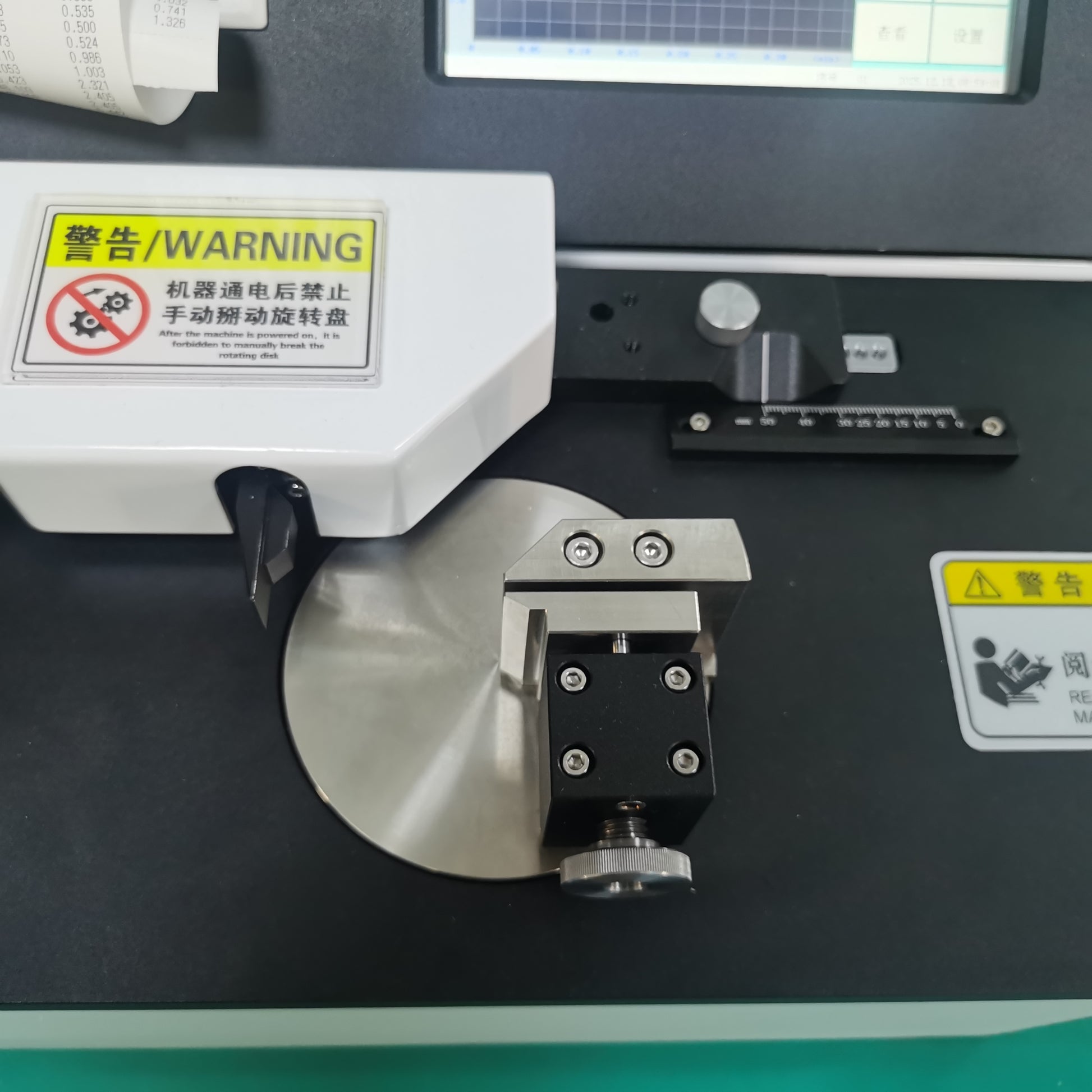

>Clamping method: Unlimited clamping, continuous non-destructive clamping
>Signal output: Standard computer signal output, connect to computer, IMT computer operating platform, can realize document editing (optional)
>Self-calibration: The equipment can perform self-calibration, with calibration tools included
>Print output: Modular integrated thermal printer
