Flexing Fatigue Tester
Flexing Fatigue Tester
Couldn't load pickup availability
Equipment Introduction:

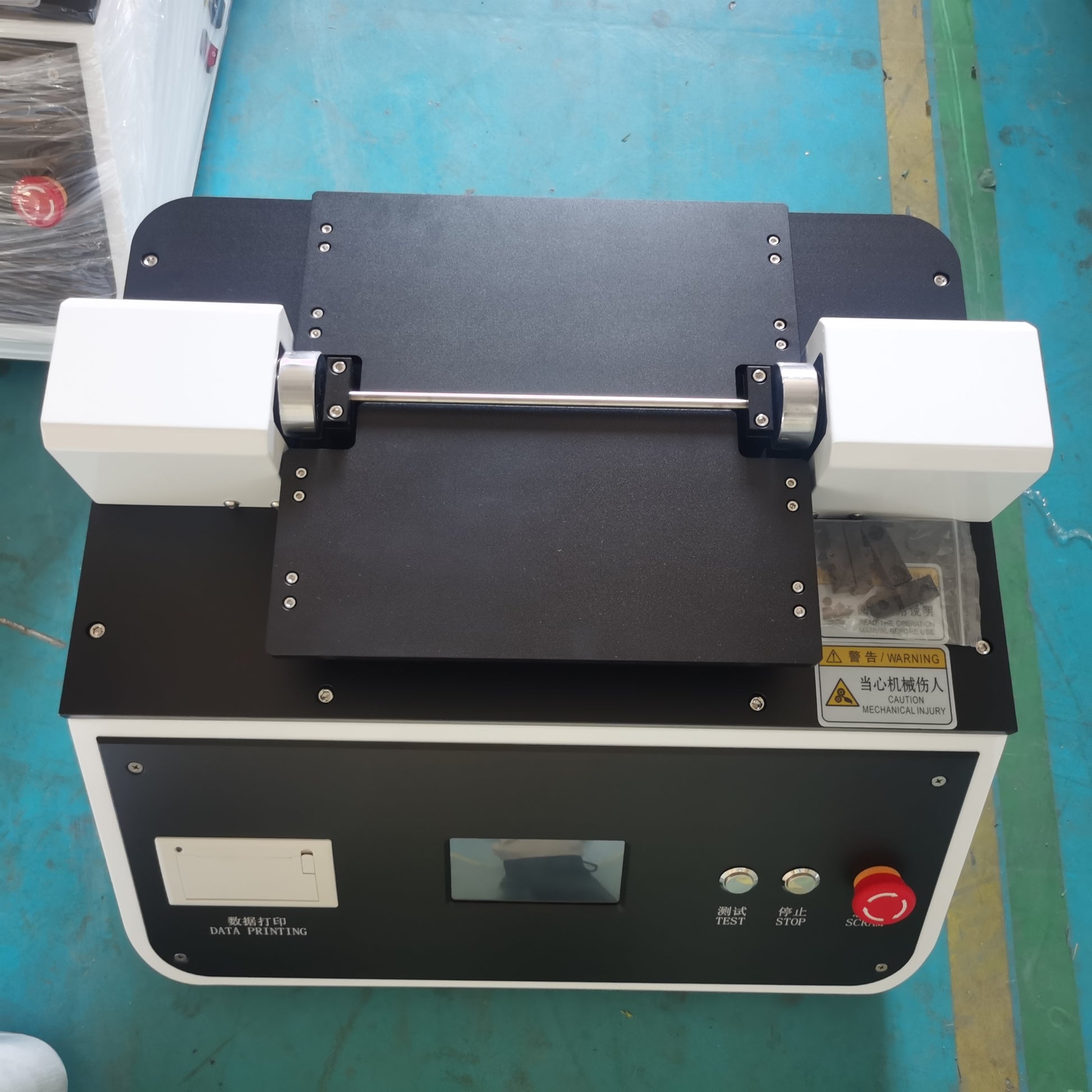

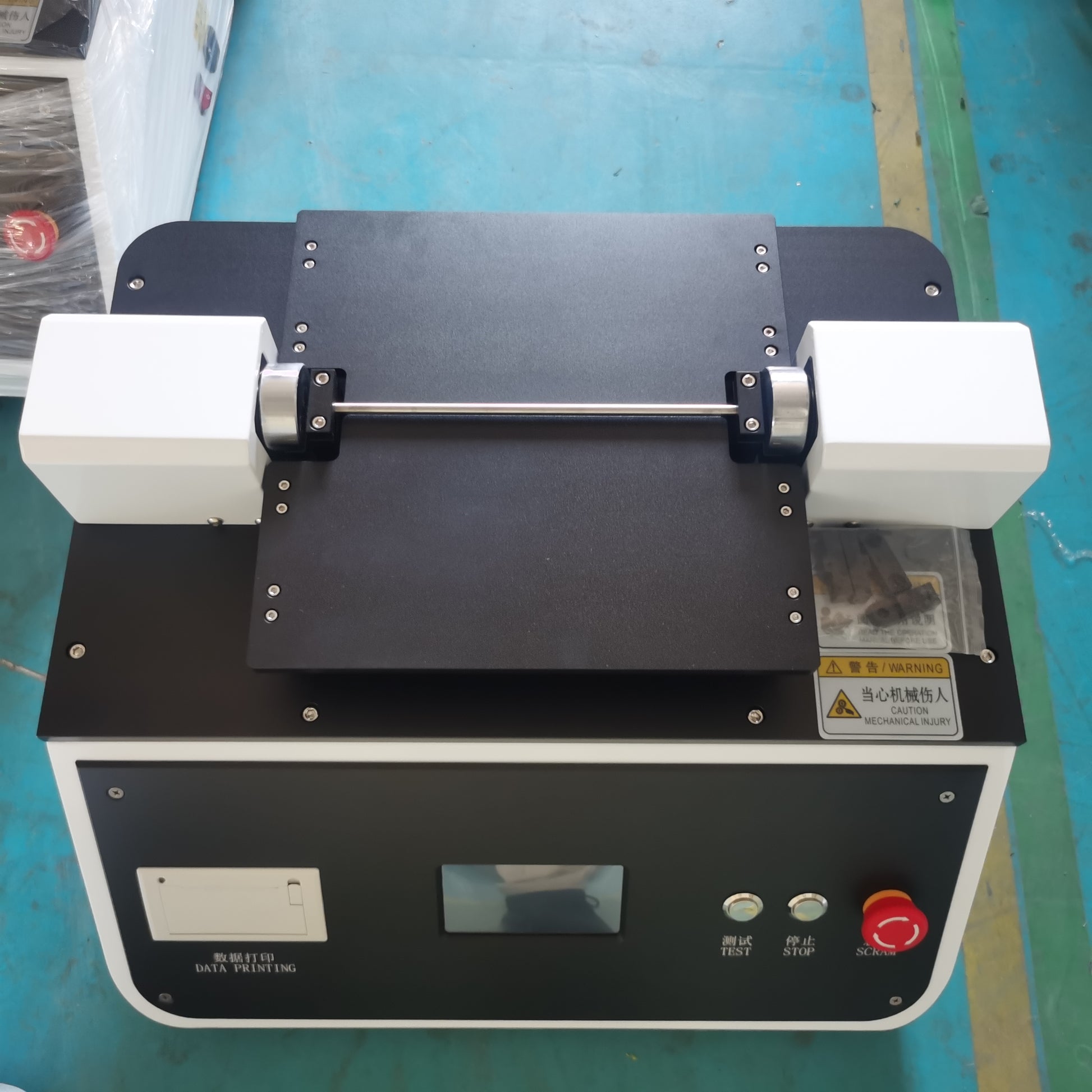

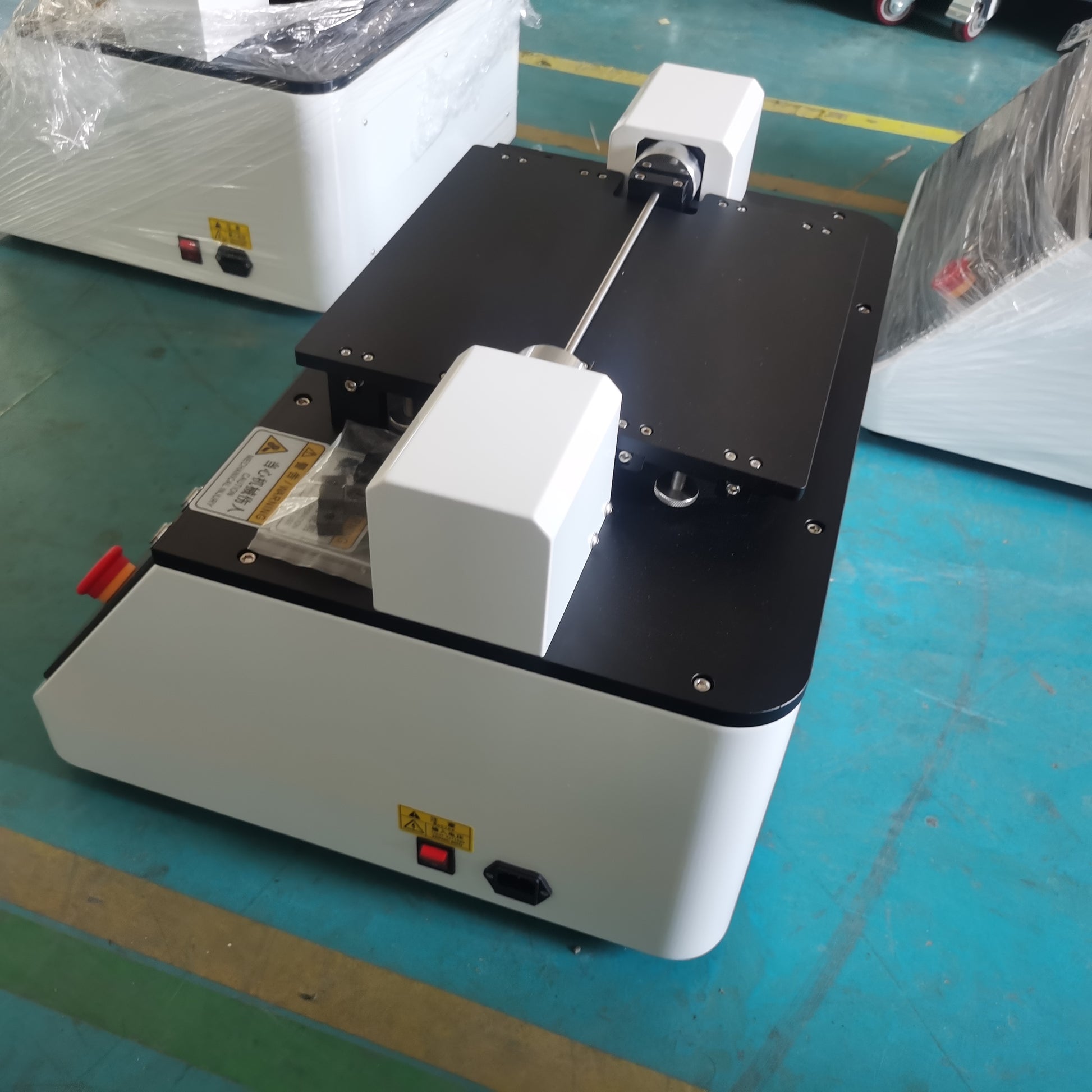

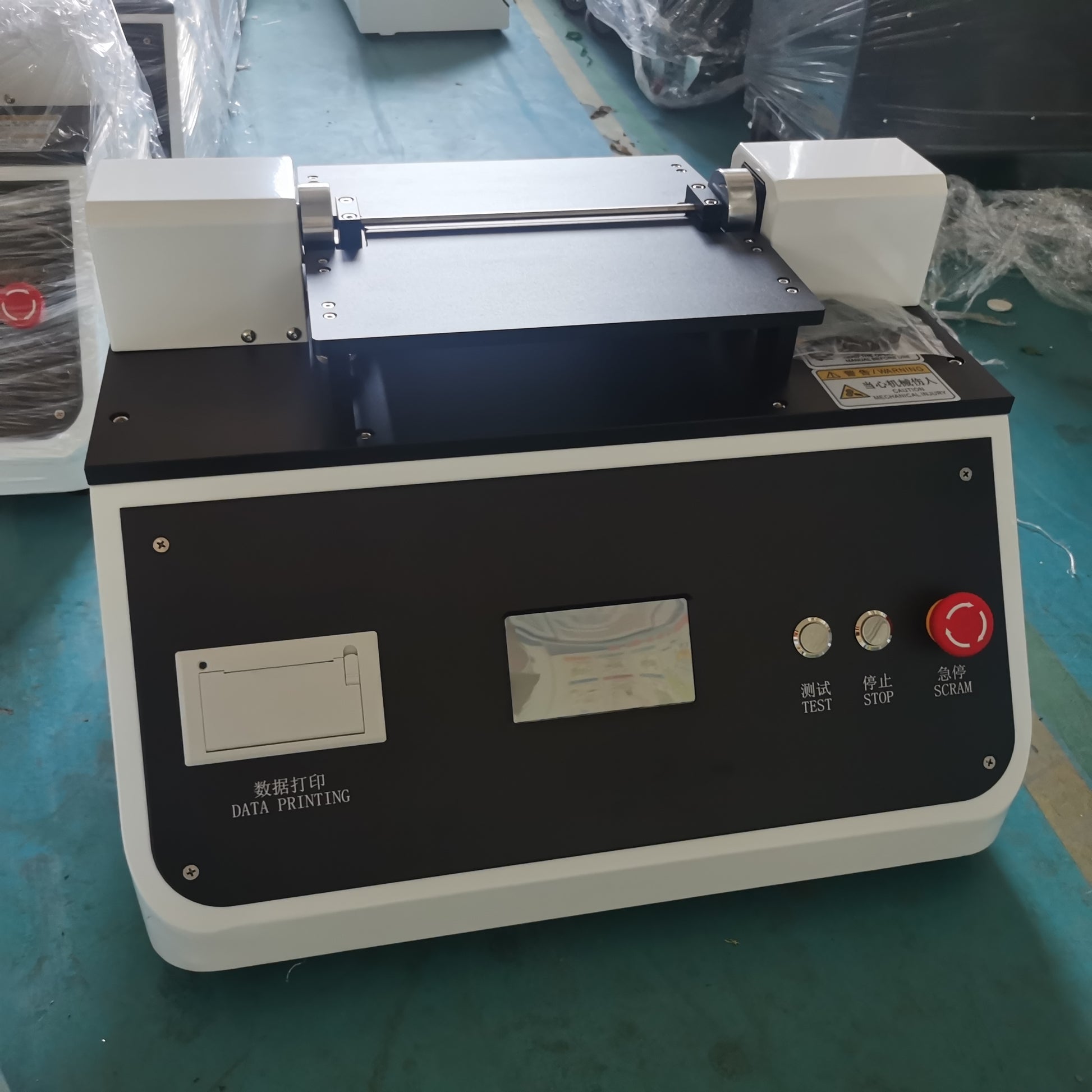

The material flex fatigue testing machine is used for folding tests of flexible materials such as FC, FPC, TP, flexible circuit boards, flexible films, flexible screens, and graphene. The flexible material folding life testing machine uses a touch screen for setting and display, performing repeated folding tests at a certain rod size, number of cycles, speed, and angle.
Professional Technology
Highly specialized, easy to operate, high accuracy of test data, stable and reliable performance;
Controlled by a microcomputer and integrated circuits, with automatic measurement and control, Chinese interface (English version optional), and a 5-inch LCD display;
Automatic saving and protection functions for test data;
Equipped with a mini printer for convenient printing of test reports.
Technical Specifications:
|
No. |
Parameter Item |
Technical Specifications |
|
1 |
Power Supply |
AC220V±10% 50Hz (AC110V±10% 60Hz customizable) |
|
2 |
Working Environment |
Temperature (10～35)℃, Relative Humidity ≤ 85% |
|
3 |
Display |
Dot matrix 5-inch color touch screen |
|
4 |
Test Area |
7±0.05 cm² |
|
5 |
Measurement Range |
0～180° (set and displayed on touch screen) |
|
6 |
Test Cycles |
0～99999 cycles |
|
7 |
Test Speed |
5～65 times/min |
|
8 |
Printing |
Thermal printer |
|
9 |
Bending Radius |
R1mm, R1.5mm, R2mm (one set of each rod) |
|
10 |
Dimensions |
580*490*360 mm |
|
11 |
Instrument Net Weight |
Approx. 35kg |
|
12 |
Dwell Time |
0～99S (settable) |
|
13 |
Folding Platform |
200×150 mm (two, one front and one back) |
