Gravure ink proofer

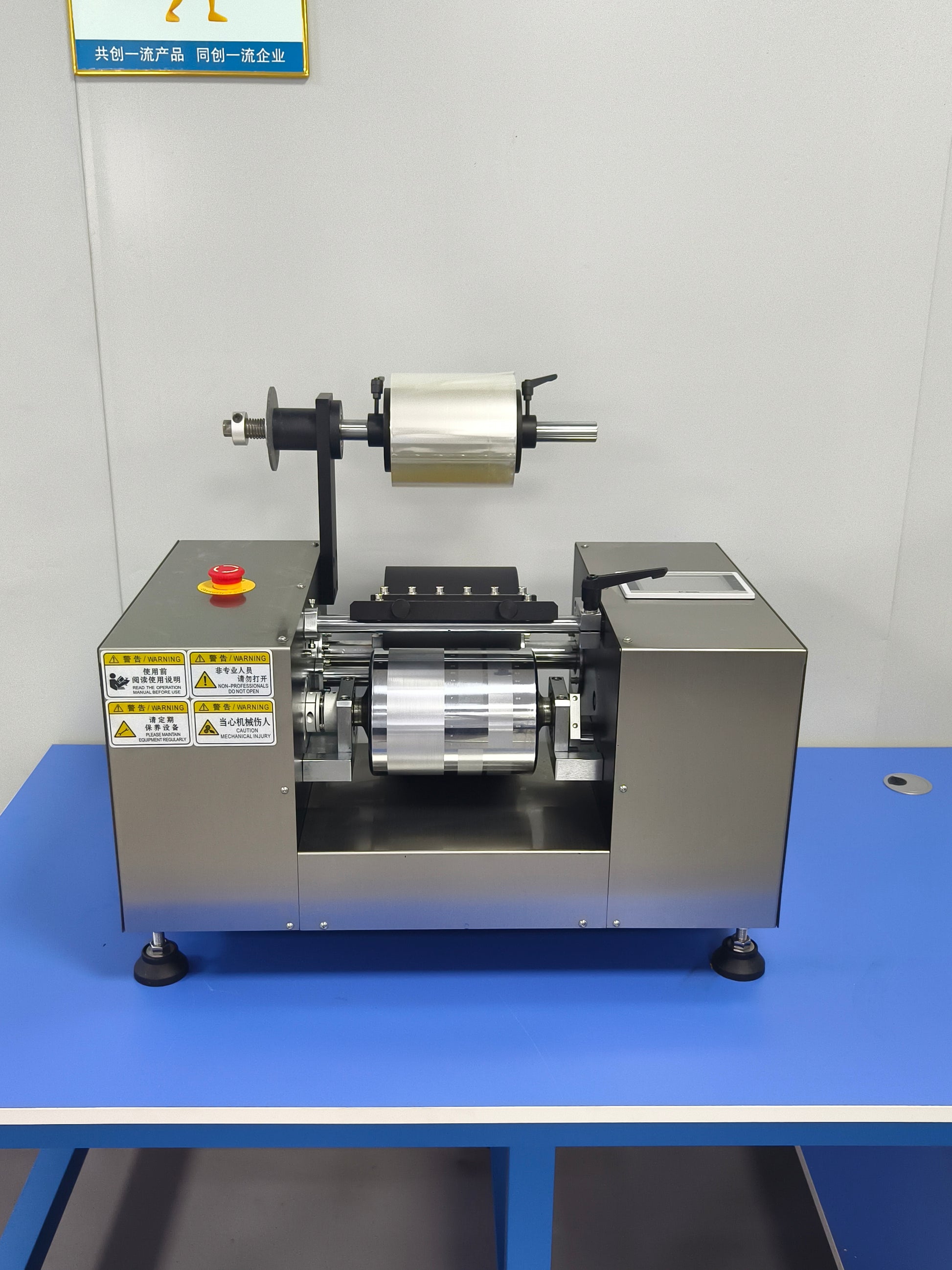

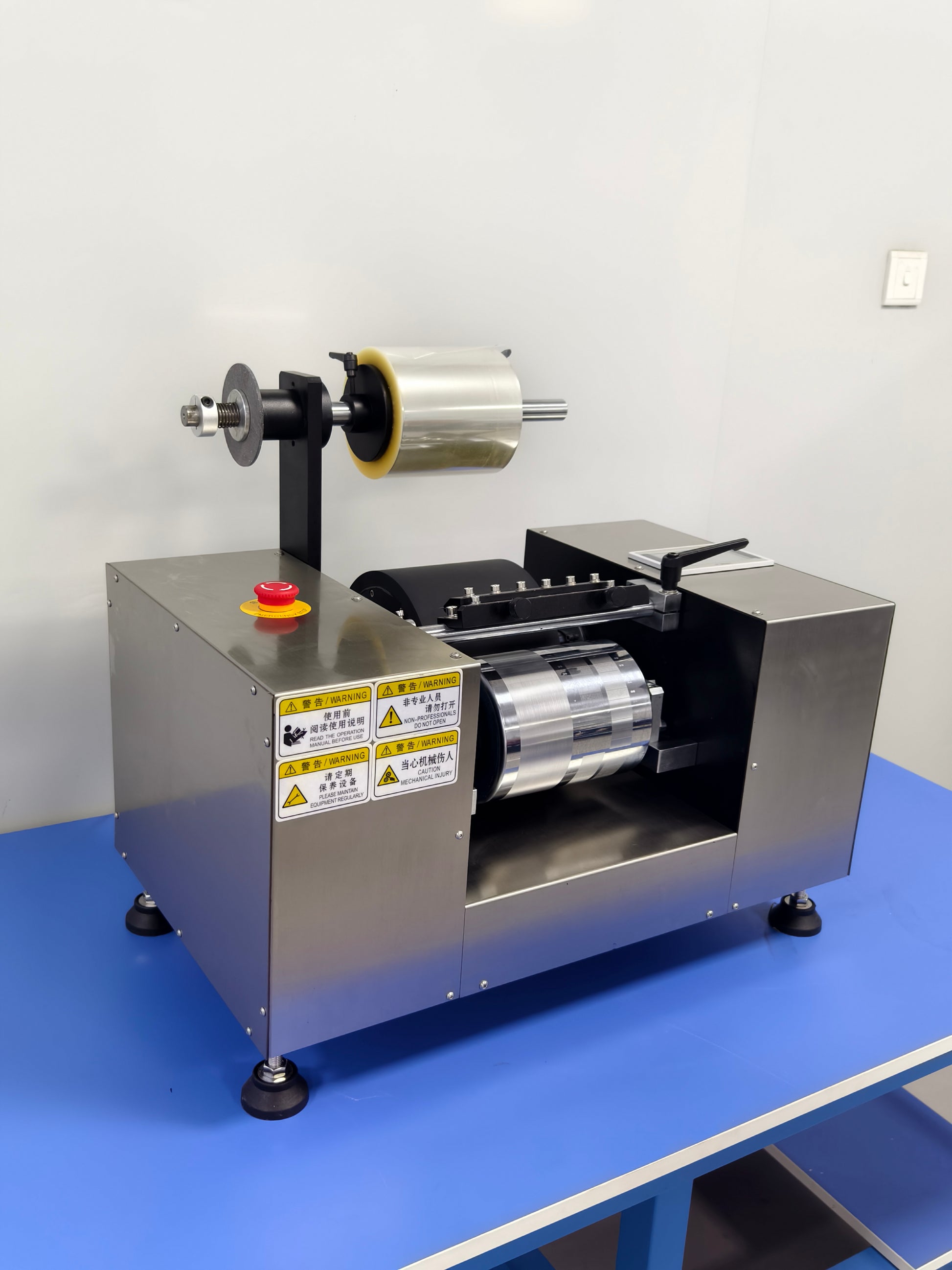

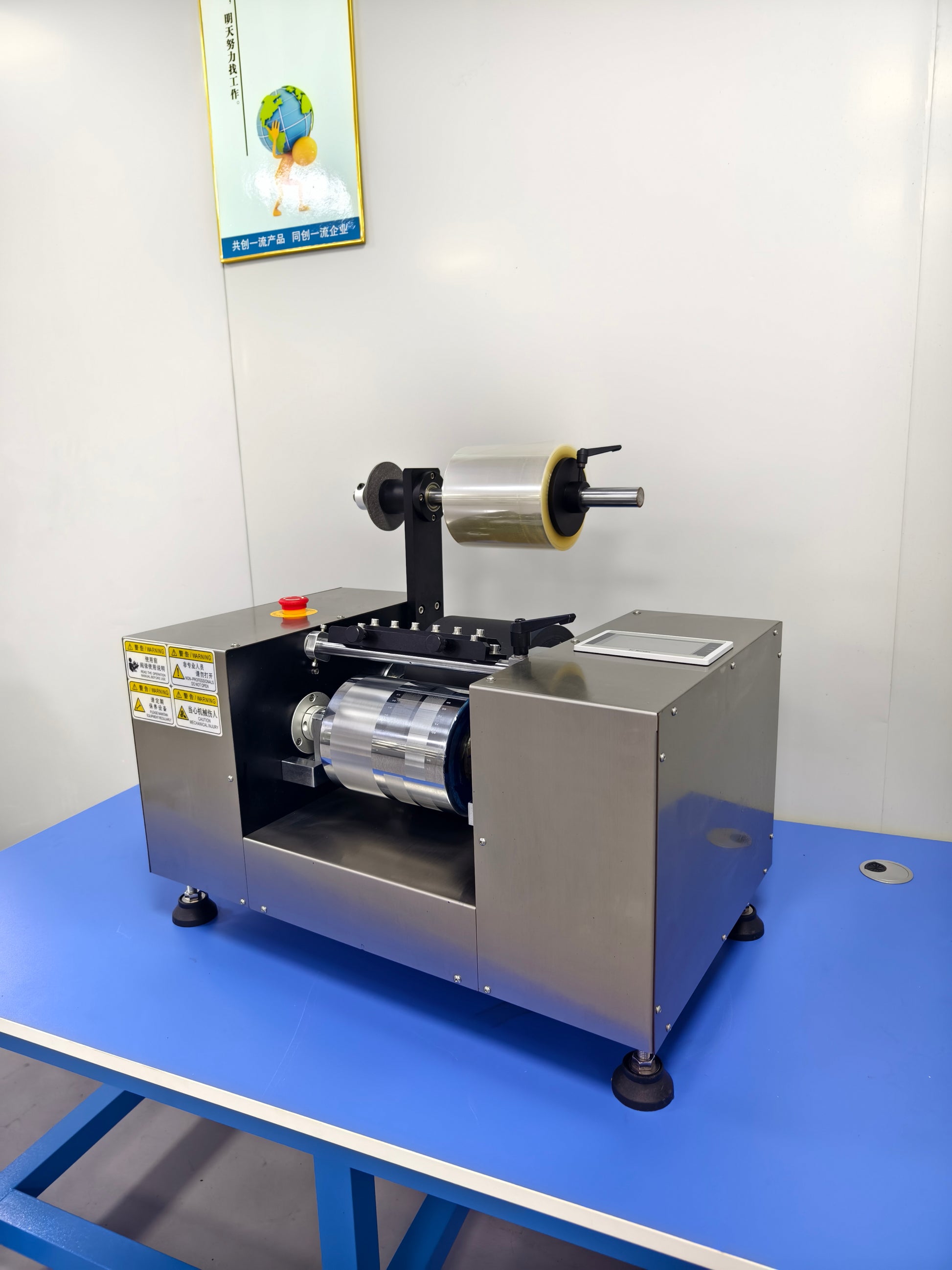

Single Color Gravure Proofer (Servo) SEMY-AY160
The gravure proofer is a "little expert" in the printing industry that simulates the actual effect of gravure printing. It is mainly used for precise proofing, process verification, and quality control, helping you predict printing results in advance and optimize production processes. Specifically:
I. Core Functions
Simulate Real Printing Effects
Driven by a servo motor, it simulates actual printing pressure and speed, ensuring that the proofing effect is consistent with actual printing.

II. Application Scenarios
Packaging Printing: Used for color consistency control of high-end packaging such as food, medicine, and cosmetics.
Label Printing: Supports small-batch, multi-variety production to meet personalized needs.
Ink Development: Provides accurate proofing for ink companies, reducing the number of formula adjustments. Applicable Ink Types: Solvent-based inks, water-based inks, UV inks, compatible with standard gravure printing ink systems. Substrate Adaptability: Paper (coated paper, white cardboard), plastic film (BOPP, PET), metal foil (aluminum foil)

Product Description:
1. Servo electric printing pressure system, PLC + touch screen control
2. Rotary operation, adjustable printing pressure
3. Automatic adjustment of printing pressure (0-4mm), printing speed can be set from 0-100 meters, allowing for low-precision overprinting.
4. Manual adjustment of doctor blade pressure, simulating the doctor blade installation method of gravure printing machines.
5. Suitable for gravure printing ink (water-based, solvent-based ink, conductive ink testing) proofing
6. Detect ink printing effect, viscosity, leveling, and use a spectrophotometer to detect ink color.

III. Hardware Configuration Drive System:
Main motor: Servo motor (power 400W, response time ≤0.1 seconds) Reduction ratio: 1:20 (ensuring low-speed high-torque output) Ink Scraper Device:
Doctor blade material: Ceramic doctor blade
Ink roller: 220mm imported rubber roller (Shore hardness 70±5)
Drying System (optional):
Hot air drying: Temperature range 50-120°C (PID temperature control, ±1°C) Control System:
Operation interface: 7-inch touch screen (supports Chinese and English switching) Substrate Size:
Standard web width: 160mm (matches printing plate cylinder)
Web diameter: Max 250mm (suitable for laboratory space)
Net Weight 85KG
Height: 310MM
Length: 400MM
Width: 680MM
Voltage: 220V 50Hz
Gravure Roller Size: Gravure cylinder: Length 180mm, diameter: 140mm. Rubber roller width: 120mm, diameter: 220mm
Power (W) 600W
Color sample size: Regular length 389X width 140mm, or customizable according to customer requirements
Standard anilox roller: Depth 25um, with dot gain 3%-100%. Or customizable according to customer requirements.

Note: Technical parameters are subject to change without prior notice.
