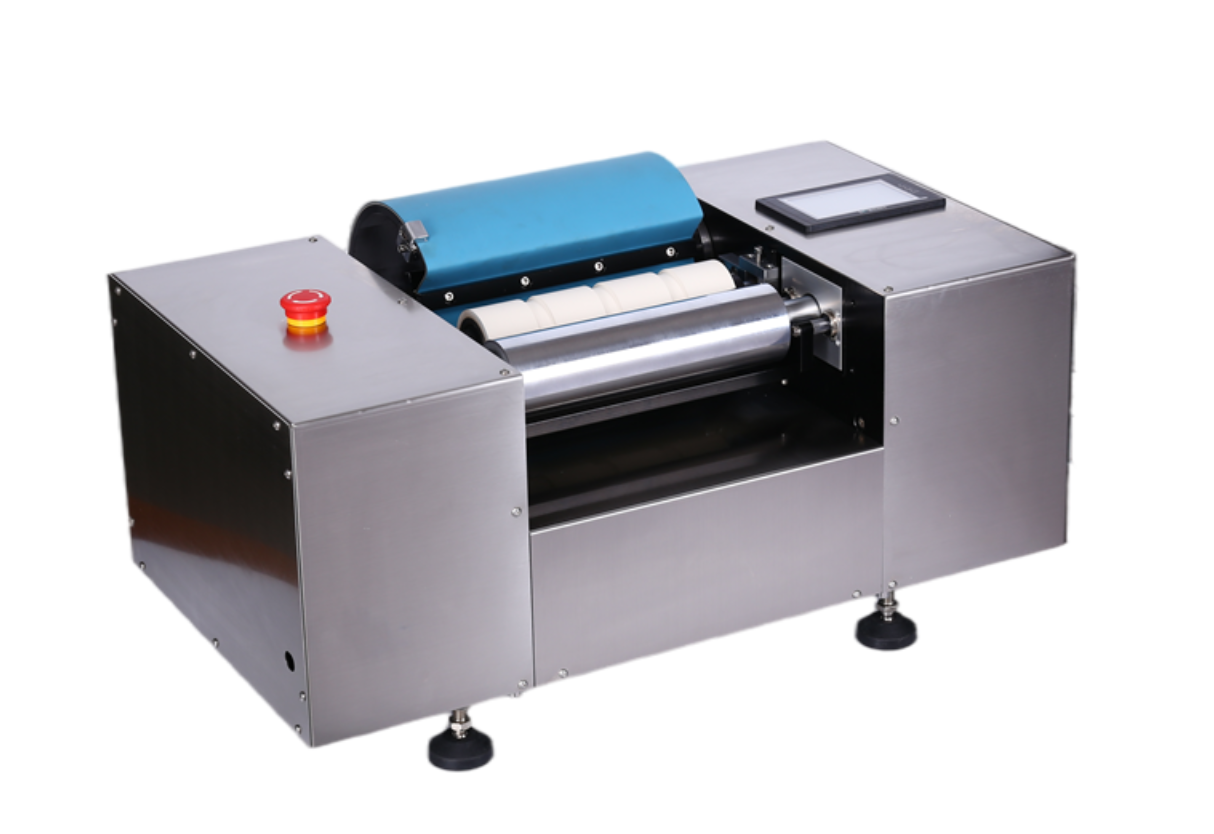

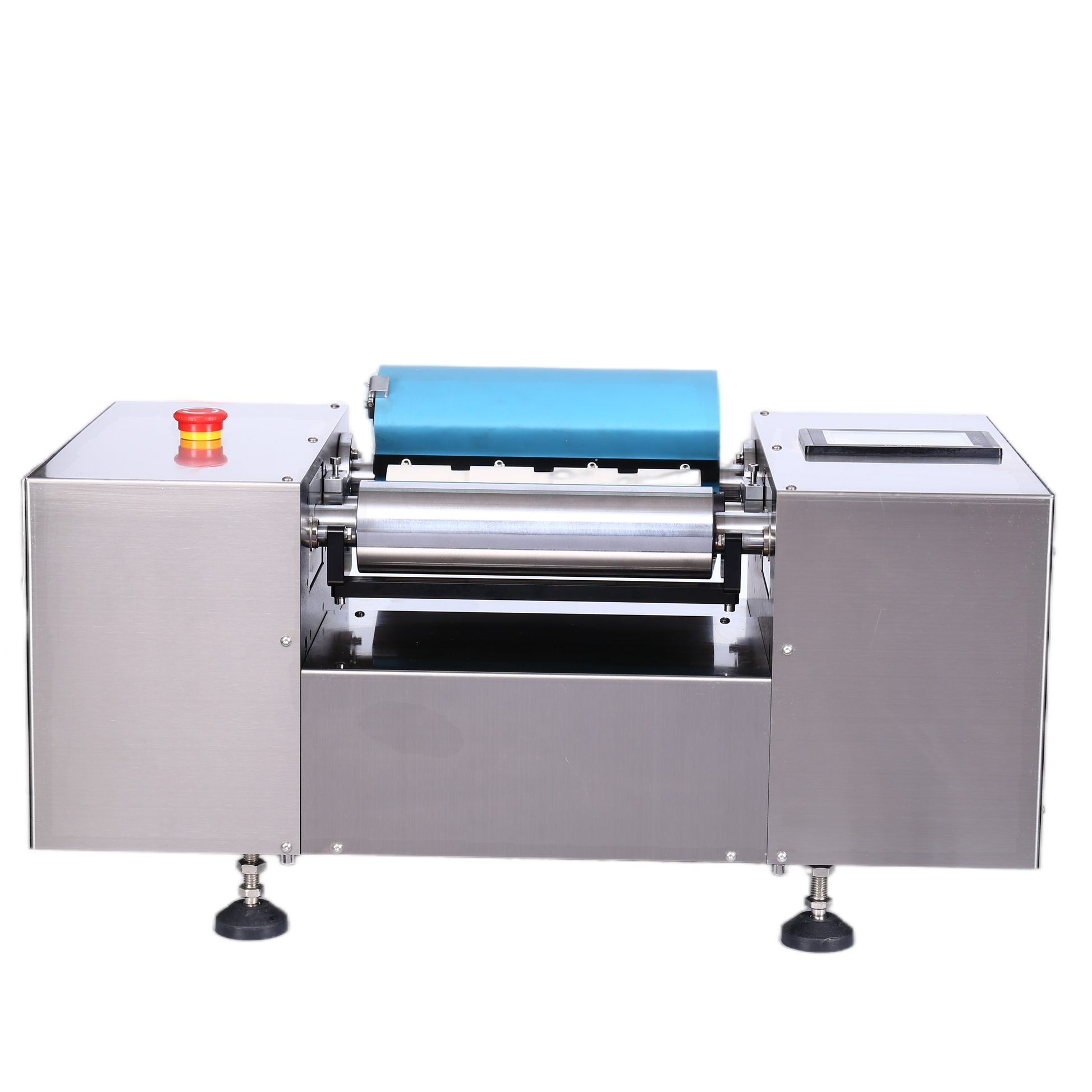

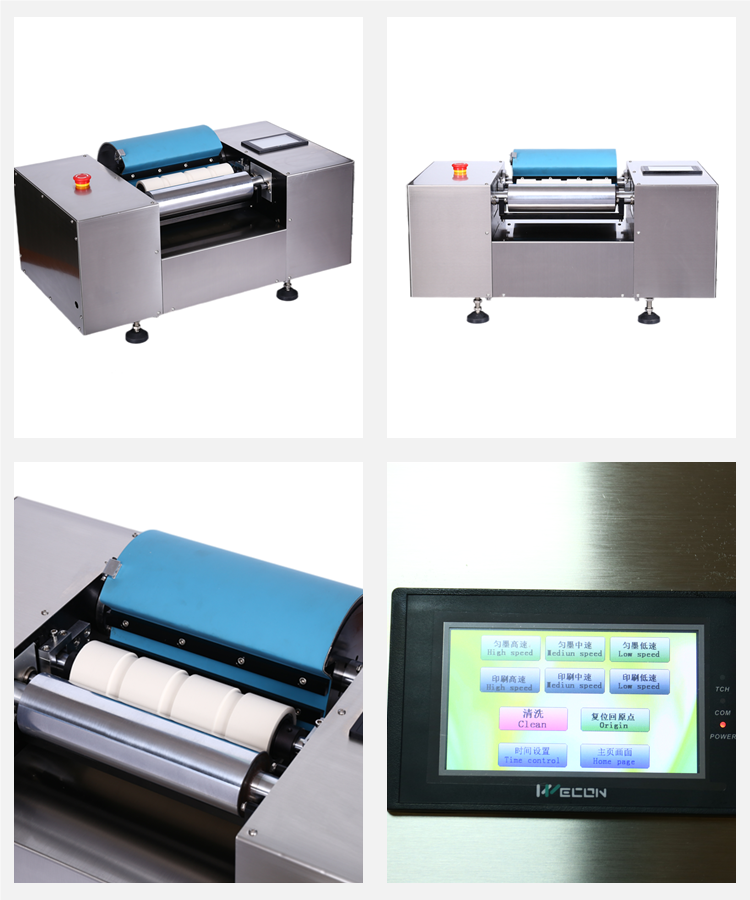

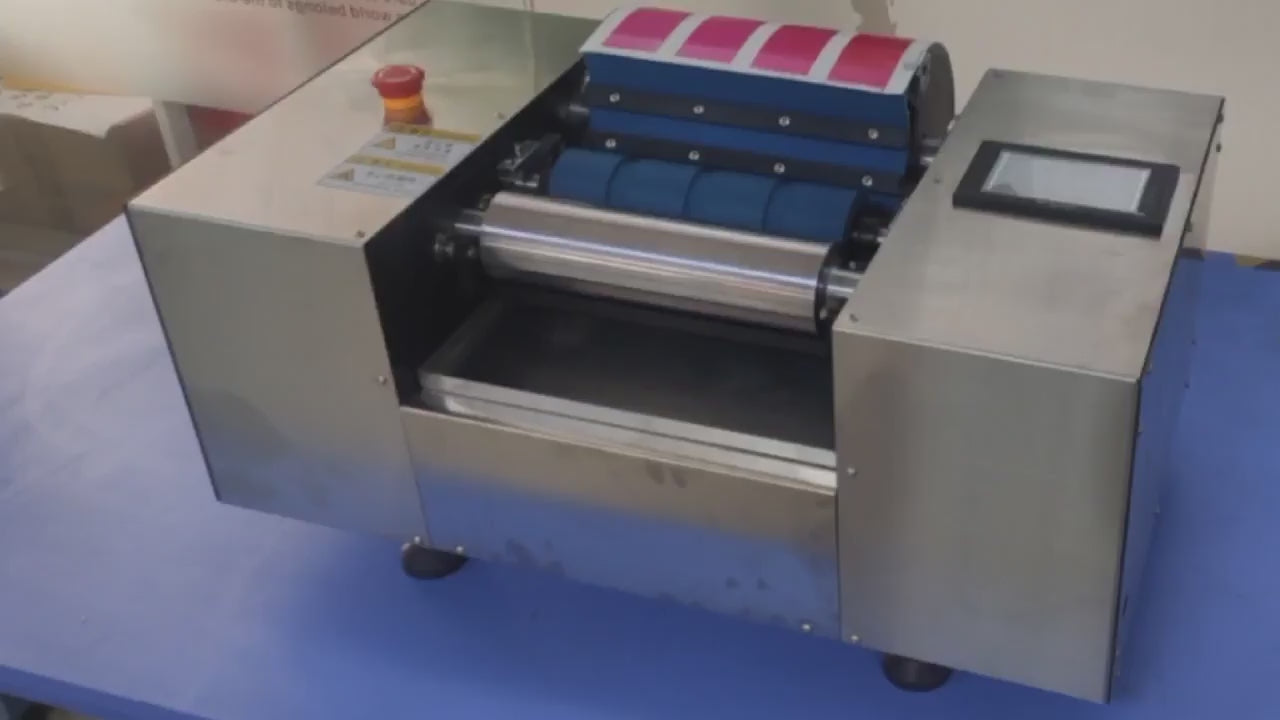

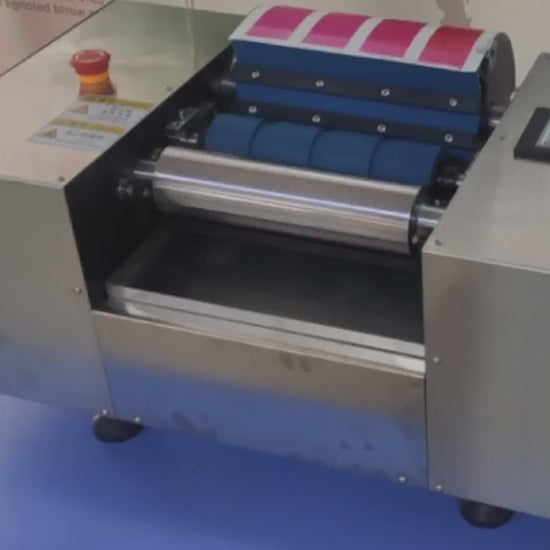

Ink Proofer

The ink proofer, according to specific technical requirements, prints ink onto substrates (paper, film, tinplate, plastic sheets) to test the printing effect of ink under various conditions. The printed color strips can be used for various tests (e.g., gloss, color density, color difference) to determine the printability of the ink. Functions of the ink proofer:
1. Automatic ink spreading, stable operation, precision machining.
2. Ink spreading time settable from 1-999S, ink spreading speed adjustable to low, medium, or high (3 levels).
3. Printing speed adjustable, with 3 levels: low, medium, high.
4. 4 primary color zones and 4 light color zones for better color difference judgment.
Technical parameters of the ink proofer:
Pressure adjustment: 0-2MM
Weight: Net weight approx. 85KG
Equipment dimensions: 700X380X280(mm)
Input voltage: 220V/50Hz
Printing area: 4 primary color samples, 45X225mm/sample (4 light color zones)
Total power: 250W
